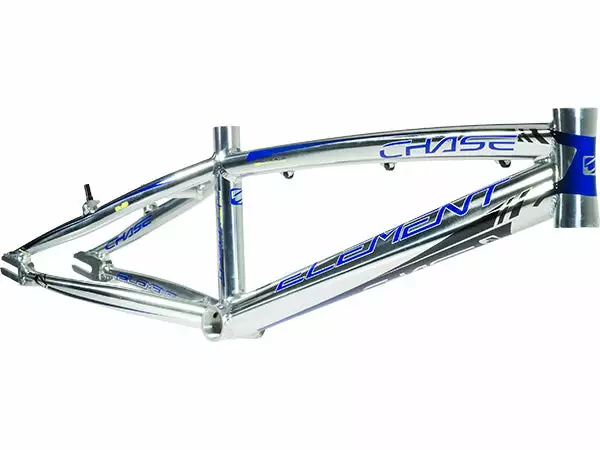

CHASE BICYCLES FRAMES Chase 2016 Element BMX Race Frame-Polished

Using innovations developed to help reduce times in road racing, Chase is excited to incorporate an Aero System Seat tube and seat post on the new Element Frame. When races are won by a fraction of a second, every bit can contribute to a win, and the aero design can help not only reduction of drag, but the new design also lightens up the overall weigh of the bike.





Frame Size	TT	CS min	LR	AF	SA	HT	SPL	BBH	Wheels	Weight
Expert	20″ 508 mm	13.5″ 342.9 mm	1.5″ 38.1 mm	73°	70°	4.7″ 120 mm	8.8″ 223.5 mm	11″ 279.4 mm	20×1-3/8″	1275 Grs 2 lbs 13 oz
Pro	20.50″ 520.70 mm	14.25″ 362.0 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.3″ 236.2 mm	11.5″ 292.1 mm	20×1.50″	1500 Grs 3 lbs 4 oz
Pro XL	21″ 533.4 mm	14.3″ 363.3 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.3″ 236.2 mm	11.5″ 292.1 mm	20×1.75″	1520 Grs 3 lbs 5.5 oz
Pro XXL	21.50″ 546.1 mm	14.5″ 368.3 mm	1.5″ 38.1 mm	74°	72.5°	4.7″ 120 mm	9.3″ 236.2 mm	11.5″ 292.1 mm	20×1.75″	1530 Grs 3 lbs 5.9 oz
Pro Cruiser	21.25″ 539.75 mm	15.25″ 387.4 mm	1.5″ 38.1 mm	73°	69.5°	4.7″ 120 mm	10.6″ 269.2 mm	12″ 304.8 mm	24×1.75″	1555 Grs 3 lbs 6.8 oz
