Sale!

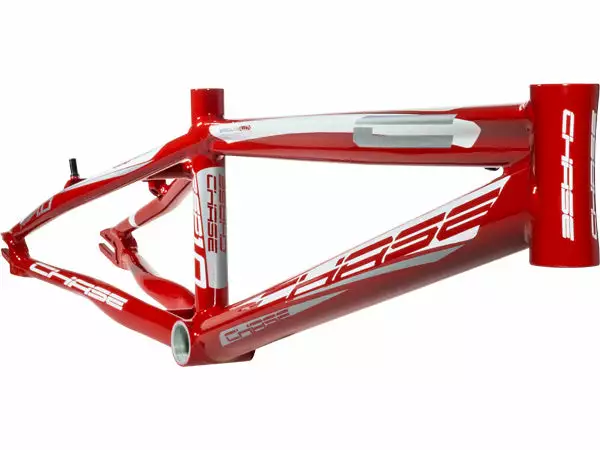

CHASE BICYCLES Chase RSP 1.0 BMX Race Frame-Ltd Ed Red FRAMES

CHASE BICYCLES Chase RSP 1.0 BMX Race Frame-Ltd Ed Red FRAMES

Name: Promotional Super Hot New Design CHASE BICYCLES Chase RSP 1.0 BMX Race Frame-Ltd Ed Red FRAMES - Bicyclea-us.com
SKU: chase-bicycles-3526857719880
Price: 91.99 USD
Availability: InStock

Original price was: $465.95.Current price is: $91.99.

Frame Size

Clear

SKU: chase-bicycles-3526857719880 Categories: FRAMES, Race Frames Tags: 26380828744out-of-stock, Bmx-frames, Bmx-frames-race, Bmx-race-frames, Chase, Discontinued, Discountable, Frames

Elevate Your Shopping Experience
The quality solution for all your needs.
Safeguard Your Shopping Experience
Your needs, our top priority.

Chase leverages the best of modern technology with 7005 T4/T6 Heat treated Alloy, Hydro-formed, tapered, oval and swedged tubing, double-butted and triple-butted tubes, CNC 3D 7mm dropouts, CNC integrated head tubes, and beautiful & detailed graphics. Chase frames feature a double-butted top tube & triple butted down tube. The chain & seat stays both utilize a special process: muscle forming to give a unique look, give added strength & stiffness to round out, creating one of the lightest & stiffest BMX frames available. Chases add these incredible features while remaining true to the traditional look of BMX but with cutting edge racing performance. The Hydroformed or teardrop shaped tubing that is on the RSP Frames are custom designed, radically shaped, & drawn aluminum alloy for weight savings and stiffness that help give optimal strength and rigidity to the frame. Hydroformed tubes have two main advantages. First, the narrow axis is a flatter surface, which means more surface area to carry the load, so it is stiffer & stronger across the minor axis. Secondly, the deeper axis is stiffer since the stiffness varies to the cube of the diameter, stronger to the square. When using an oval-shaped tube on a typical BMX frame it helps reduce flex but only in one direction, but on the Chase frame the tubes are oval in both directions in the main flex areas and these tubes help reduce flex in both main directions.

FRAME SPECS (Mini XL – Expert):
SEAT CLAMP: 1″
SEAT POST: 22.2mm
HEADSET: Integrated (requires a “step-down type” integrated headset for use with 1″ forks. All frames (even minis) come with 1-18″ headtube. ACS, ELEVN, and SINZ make a step-down headset with 1-18″ bearings and 1″ sleeve to fit 1″ forks)

FRAME SPECS (Expert XL and Larger):
SEAT CLAMP: 1 1/4″
SEAT POST: 27.2mm
HEADSET: Integrated for all frames (1 1/8″)

FRAME SIZE	TOP TUBE	CHAIN STAY	HEAD ANGLE	SEAT ANGLE	BB HEIGHT	WEIGHT
MINI XL	18″	12.75″	73°	70°	10.6″	2lbs 10oz
JUNIOR XL	19″	13″	73°	70°	10.6″	2lbs 11oz
EXPERT	19.5″	13″	73°	70°	11″	2lbs 13oz
EXPERT XL	20″	13.5″	73°	70°	11″	3lbs 3oz
PRO	20.5″	14.25″	74°	72.5°	11.5″	3lbs 4oz
PRO PLUS	20.75″	14.25″	74°	72.5°	11.5″	3lbs 5oz
PRO XL	21″	14.3″	74°	72.5°	11.5″	3lbs 5,5oz
PRO XL PLUS	21.25″	14.5″	74°	72.5°	11.5″	3lbs 5.7oz
PRO XXL	21.5″	14.5″	74°	72.5°	11.5″	3lbs 5.9oz
PRO XXL PLUS	21.75″	14.75″	74°	72.5°	11.5″	3lbs 6oz
PRO CRUISER	21.25″	15.25″	73°	69.5°	12″	3lbs 6.8oz
PRO XL CRUISER	21.75″	15.25″	73°	69.5°	12″	3lbs 7oz
