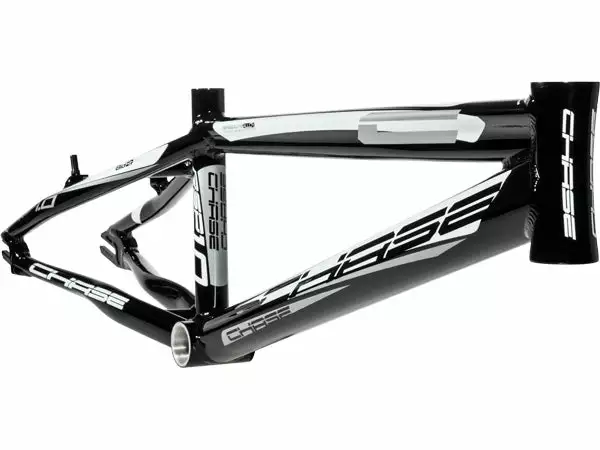

CHASE BICYCLES Chase RSP 1.0 BMX Race Frame-Black

Chase leverages the best of modern technology with 7005 T4/T6 Heat treated Alloy, Hydro-formed, tapered, oval and swedged tubing, double-butted and triple-butted tubes, CNC 3D 7mm dropouts, CNC integrated head tubes, and beautiful & detailed graphics. Chase frames feature a double-butted top tube & triple butted down tube. The chain & seat stays both utilize a special process: muscle forming to give a unique look, give added strength & stiffness to round out, creating one of the lightest & stiffest BMX frames available. Chase adds these incredible features while remaining true to the traditional look of BMX but with cutting edge racing performance. The Hydro formed or tear drop shaped tubing that is on the RSP Frames are custom designed, radically shaped, & drawn aluminum alloy for weight savings and stiffness that help give optimal strength and rigidity to the frame. Hydro formed tubes have two main advantages. First, the narrow axis is a flatter surface, which means more surface area to carry the load, so it is stiffer & stronger across the minor axis. Secondly, the deeper axis is stiffer since the stiffness varies to the cube of the diameter, stronger to the square. When using an oval-shaped tube on a typical BMX frame it helps reduce flex but only in one direction, but on the Chase frame the tubes are oval in both directions in the main flex areas and these tubes help reduce flex in both main directions.

FRAME SPECS (Mini XL – Expert):

• SEAT CLAMP: 1″
• SEAT POST: 22.2mm

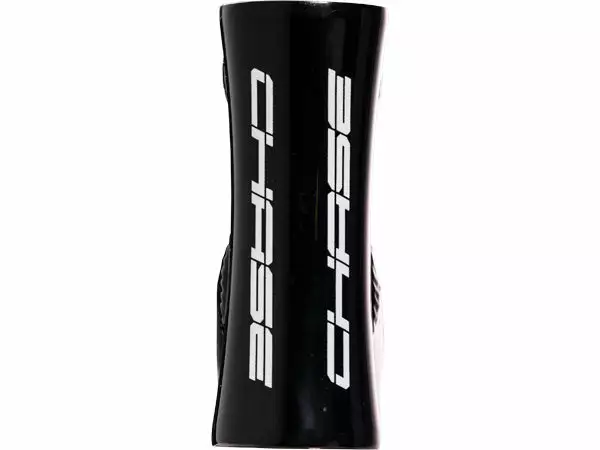

• HEADSET: Integrated (requires a “step-down type” integrated headset for use with 1″ forks. All frames (even minis) come with 1-18″ headtube. ACS, ELEVN and SINZ make a step down headset with 1-18″ bearings and 1″ sleeve to fit 1″ forks)

FRAME SPECS (Expert XL and Larger):

• SEAT CLAMP: 1 1/4″
• SEAT POST: 27.2mm
• HEADSET: Integrated for all frames (1 1/8″)

GEOMETRY

Chase RSP 1.0 BMX Race Frame Black Geometry Chart

SIZE	TT	CS	HA	SA	BB	WEIGHT
SIZE: MINI XL	TT: 18″	CS: 12.75″	HA: 73°	SA: 70°	BB: 10.6″	WEIGHT: 2lbs 10oz
SIZE: JUNIOR XL	TT: 19″	CS: 13″	HA: 73°	SA: 70°	BB: 10.6″	WEIGHT: 2lbs 11oz
SIZE: EXPERT	TT: 19.5″	CS: 13″	HA: 73°	SA: 70°	BB: 11″	WEIGHT: 2lbs 13oz
SIZE: EXPERT XL	TT: 20″	CS: 13.5″	HA: 73°	SA: 70°	BB: 11″	WEIGHT: 3lbs 3oz
SIZE: PRO	TT: 20.5″	CS: 14.25″	HA: 74°	SA: 72.5°	BB: 11.5″	WEIGHT: 3lbs 4oz
SIZE: PRO PLUS	TT: 20.75″	CS: 14.25″	HA: 74°	SA: 72.5°	BB: 11.5″	WEIGHT: 3lbs 5oz
SIZE: PRO XL	TT: 21″	CS: 14.3″	HA: 74°	SA: 72.5°	BB: 11.5″	WEIGHT: 3lbs 5,5oz
SIZE: PRO XL PLUS	TT: 21.25″	CS: 14.5″	HA: 74°	SA: 72.5°	BB: 11.5″	WEIGHT: 3lbs 5.7oz
SIZE: PRO XXL	TT: 21.5″	CS: 14.5″	HA: 74°	SA: 72.5°	BB: 11.5″	WEIGHT: 3lbs 5.9oz
SIZE: PRO XXL PLUS	TT: 21.75″	CS: 14.75″	HA: 74°	SA: 72.5°	BB: 11.5″	WEIGHT: 3lbs 6oz
SIZE: PRO CRUISER	TT: 21.25″	CS: 15.25″	HA: 73°	SA: 69.5°	BB: 12″	WEIGHT: 3lbs 6.8oz
SIZE: PRO XL CRUISER	TT: 21.75″	CS: 15.25″	HA: 73°	SA: 69.5°	BB: 12″	WEIGHT: 3lbs 7oz
