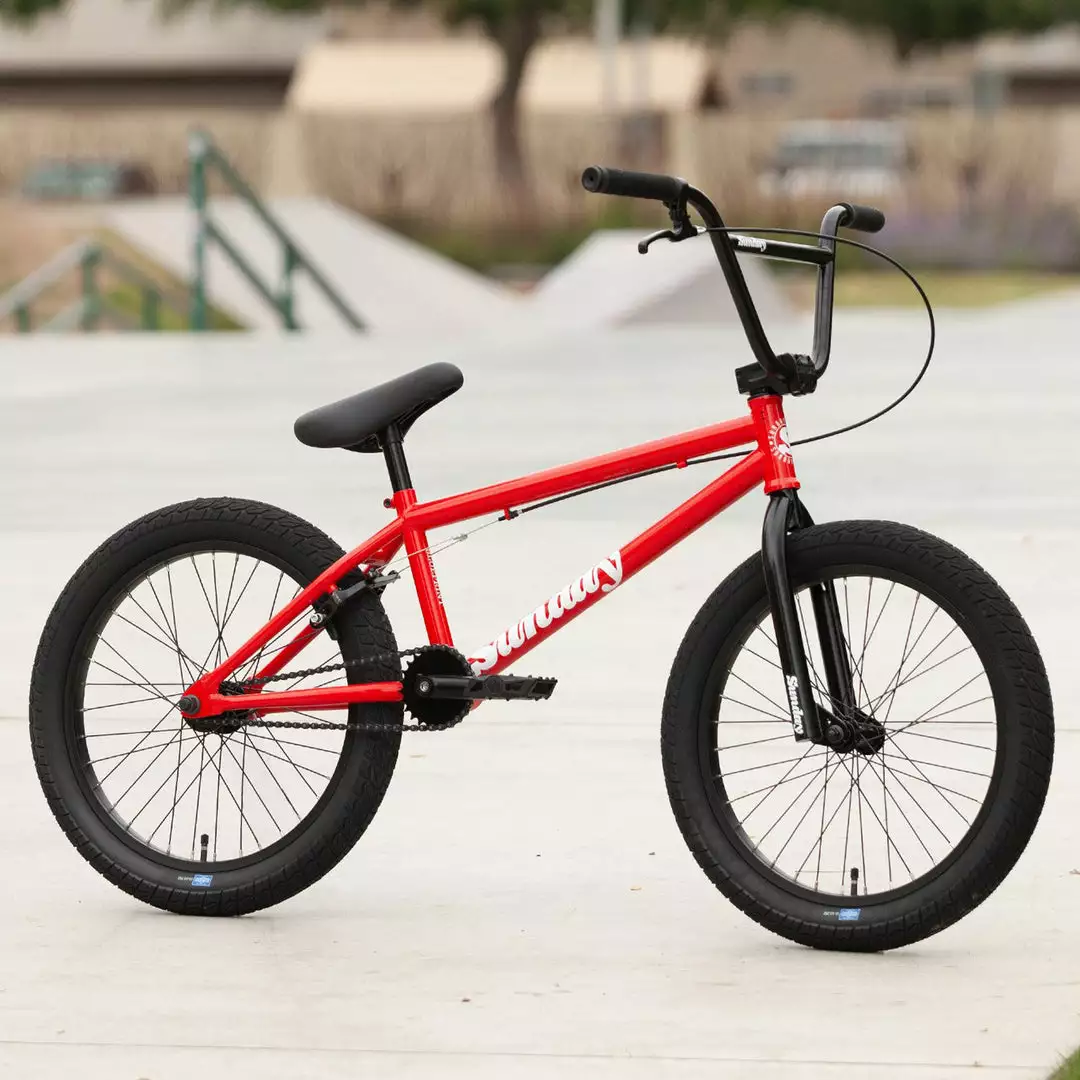

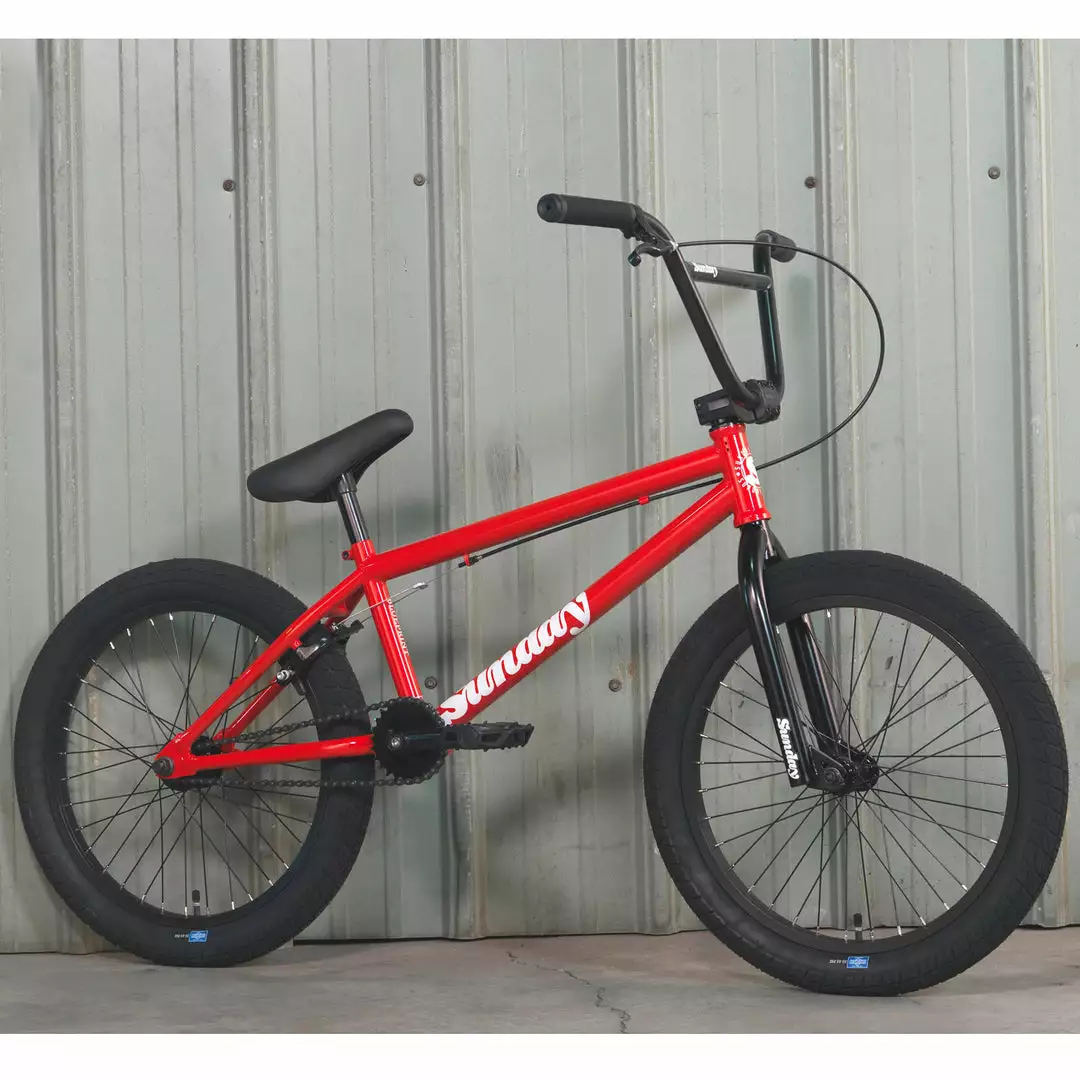

BIKES Sunday Blueprint 20″TT BMX Freestyle Bike-Gloss Fire Engine Red

The Sunday Blueprint 20″TT BMX Freestyle Bike-Gloss Fire Engine Red is a great entry-level bike with pro-level geometry. Includes 2.4″ Sunday Current v2 tires, Odyssey Springfield brakes, and a Full Speed Ahead integrated head tube. A no-nonsense bike for the perfect ride-focused introduction to a great sport.

FEATURES

• Sunday Current v2 2.4″
• Odyssey Springfield Brakes
• FSA Integrated Headset
• Sunday Cornerstone Grips
• Sunday Freeze Front Load Stem
• KMC S1 Chain

SPECIFICATIONS

• FRAME: Sunday Blueprint, 20″ top tube, integrated 1-1/8″ head tube
• FORK: Sunday Blueprint, 20″ fork w/ 2-piece steerer tube and welded pre-load

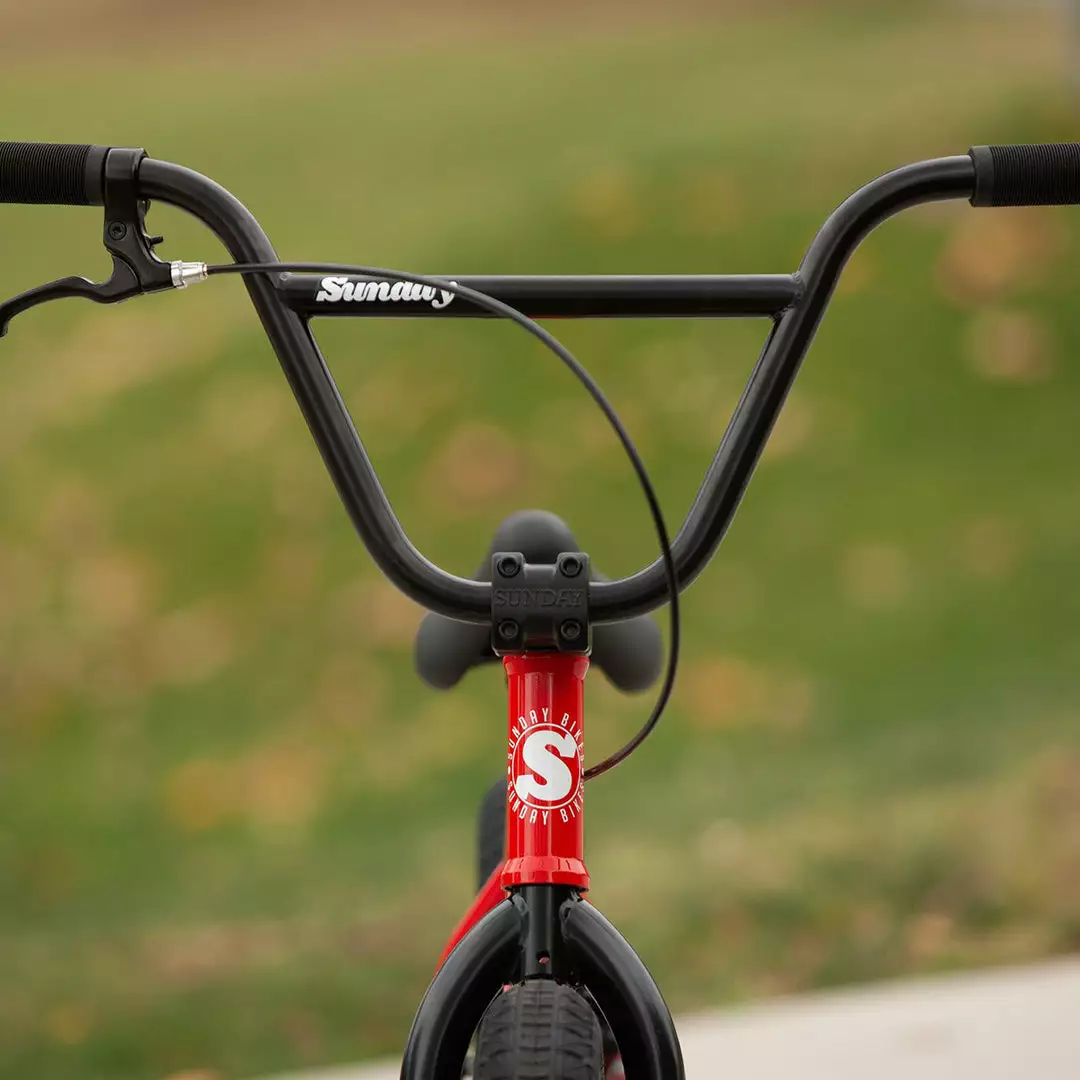

• HANDLEBAR: Sunday, 2-piece

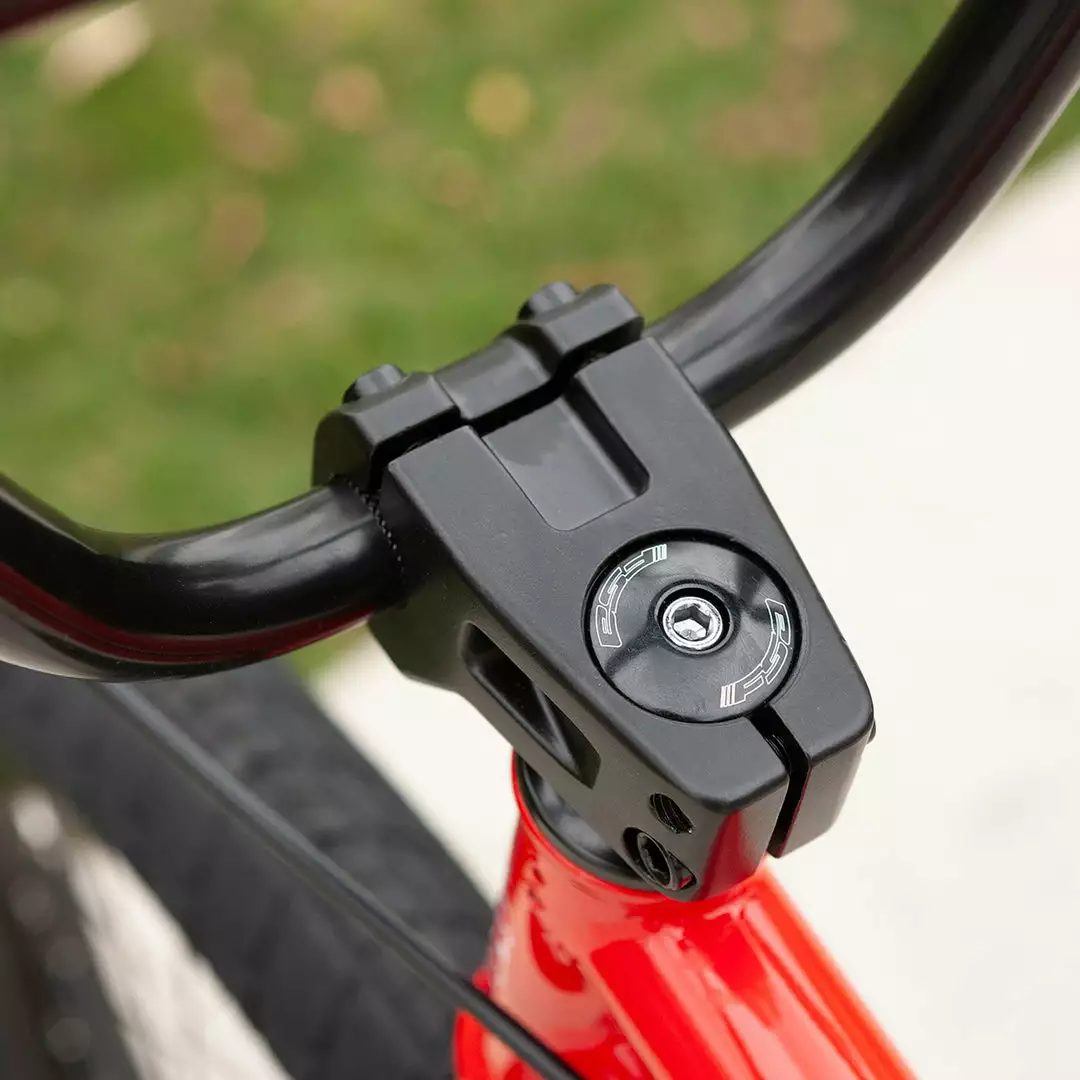

• STEM: Sunday Freeze front load, 48mm
• HEADSET: FSA integrated, 1-1/8″
• ALLOY CAP: FSA aluminum cap
• BRAKE LEVER: Aluminum, U-brake compatible
• BRAKES: Odyssey Springfield U-brake
• BRAKE CABLE: Odyssey Quik Slic
• GRIPS: Sunday Cornerstone
• SEAT: Sunday Badge, seat and post combo
• SEAT POST: Integrated
• SEAT CLAMP: Integrated
• SPROCKET: Sunday S-Logo, 25T, steel
• CRANKS: 160mm, 3-piece, chromoly
• BB PARTS: Loose-ball, American, 19mm
• PEDALS: Wellgo platform, plastic
• RIMS: P-7X aluminum, 20″, 36H
• FRONT HUB: Sunday, 36H, low-flange, loose-ball, 3/8″ axle

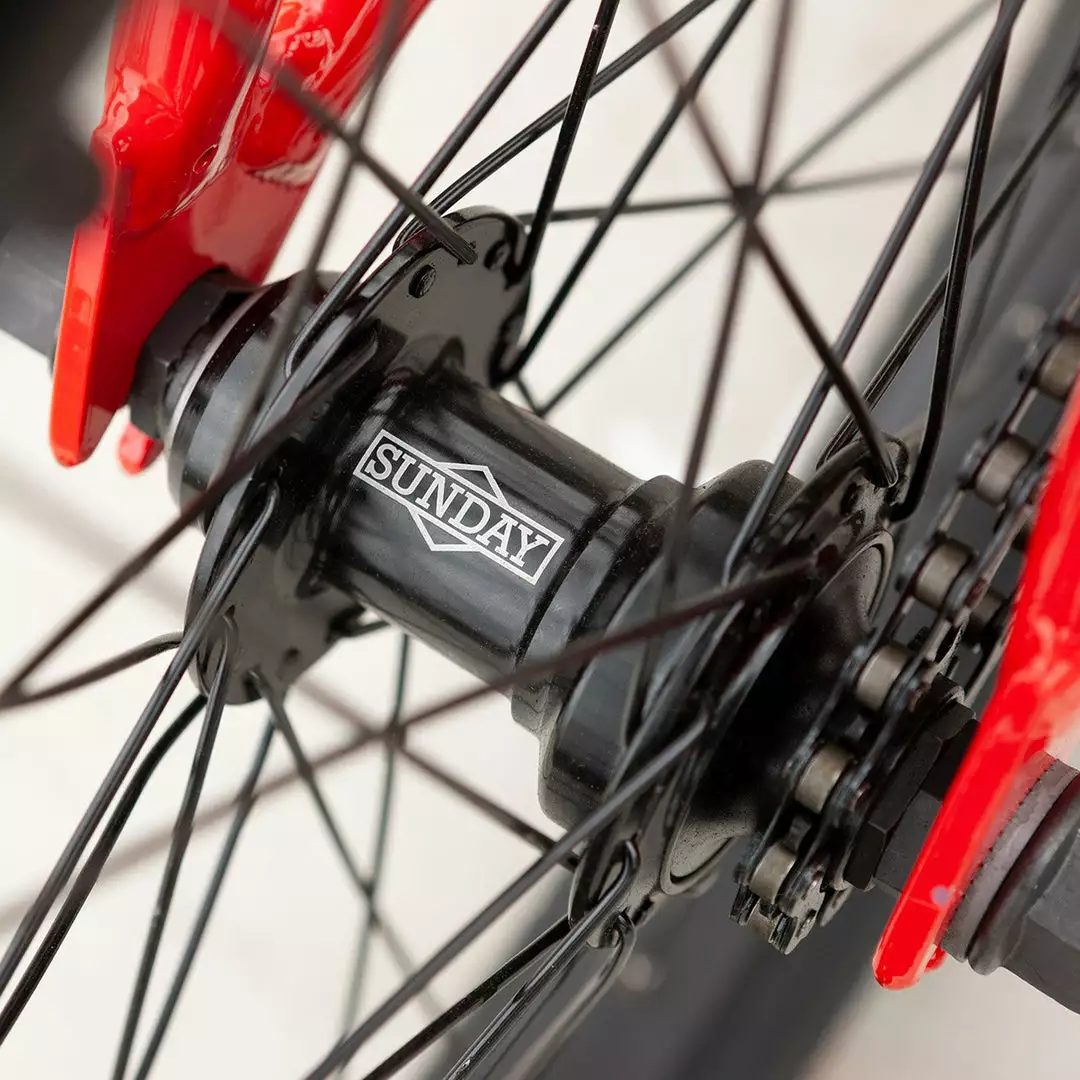

• REAR HUB: Sunday, 36H,14mm axle w/ 9t Driver
• SPOKES: 14g steel, black

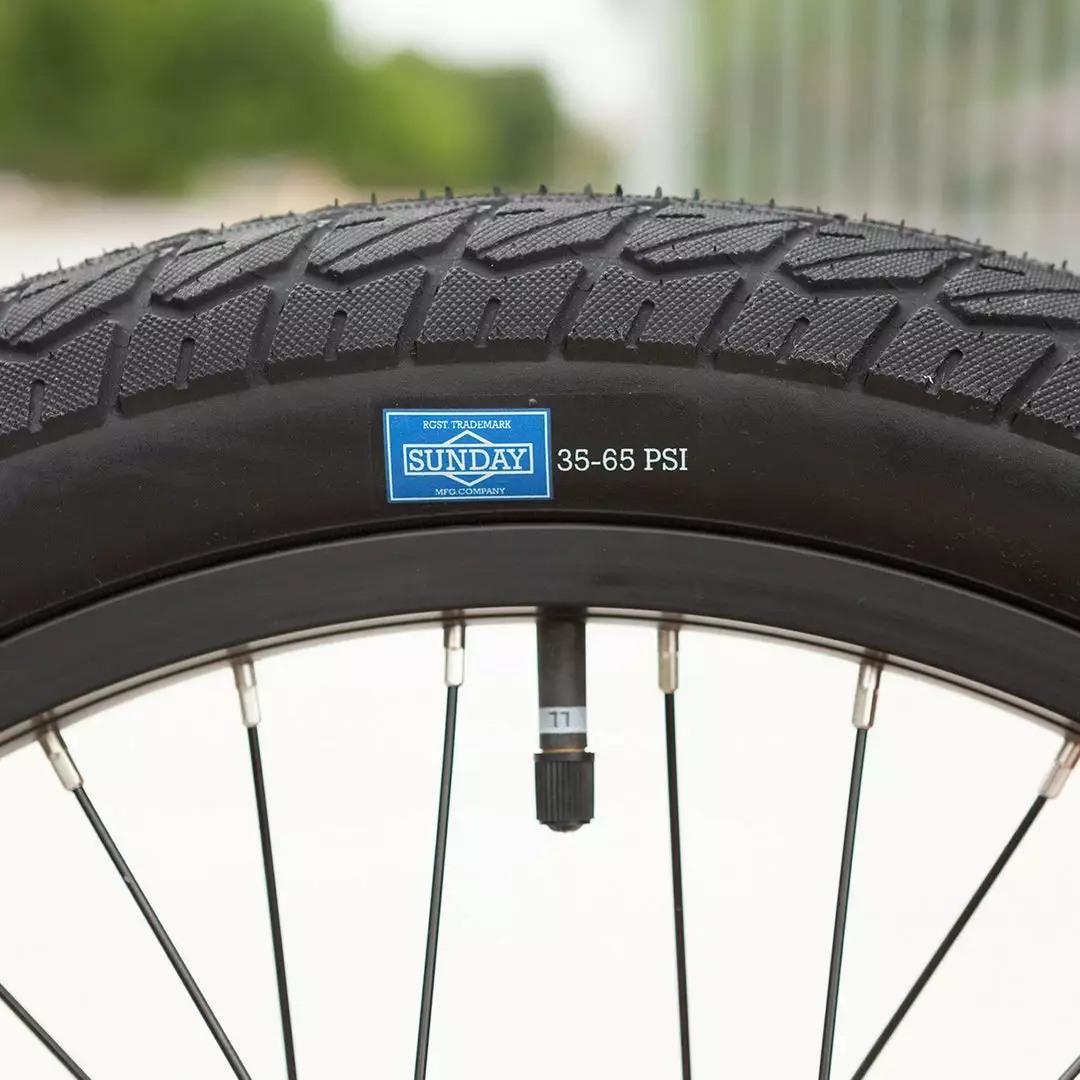

• TIRES: Sunday Current, 20 x 2.4″ (F & R)
• CHAIN: KMC S1
• APPROX. WEIGHT: 26lbs (with brakes)

GEOMETRY

• TOP TUBE LENGTH: 20″
• HEAD TUBE ANGLE: 75°
• SEAT TUBE ANGLE: 71°
• CHAINSTAY LENGTH: 13.2-13.5″
• BOTTOM BRACKET HEIGHT: 11.5″
• STANDOVER: 8.75″
• RISE: 9″
• WIDTH: 28.5″
• BACKSWEEP: 12°
• UPSWEEP: 4°
